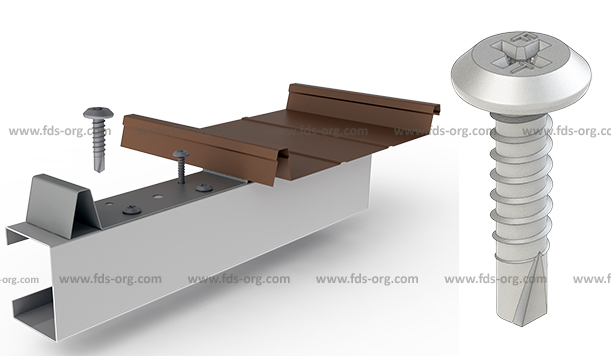

Concealed fixing of clip system to medium steel section
Concealed Fixing
Wafer Head, Self-Drilling Fastener.
| Size | Drilling Capacity | Drive System |
|---|---|---|
| EC WFR #10-16x16mm | 4.5mm | #2 Phillips |
| EC WFR #10-16x22mm | 4.5mm | #2 Phillips |
| EC WFR #10-16x25mm | 4.5mm | #2 Phillips |
| EC WFR #10-24x32mm | 4.5mm | #2 Phillips |
| EC WFR #10-24x38mm | 4.5mm | #2 Phillips |
| EC WFR #10-24x50mm | 4.5mm | #2 Phillips |

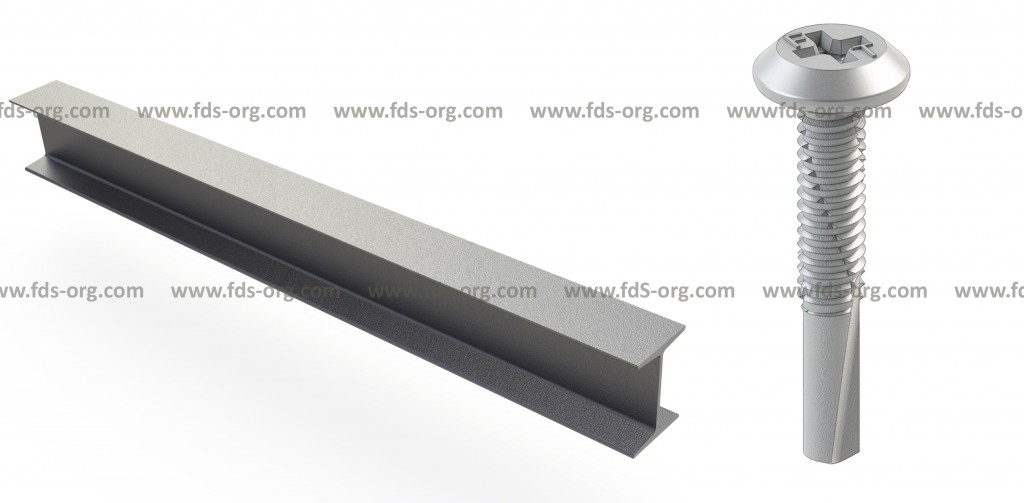

Concealed fixing of clip system to hot-rolled steel sections
Wafer Head, D5 Drill Point, Self-Drilling Fastener.
| Size | Drilling Capacity | Drive System |
|---|---|---|
| WFR #12-24x32mm D5 | 10.5mm | #3 Phillips |
| WFR #12-24x38mm D5 | 10.5mm | #3 Phillips |
| WFR #12-24x45mm D5 | 10.5mm | #3 Phillips |
| WFR #12-24x55mm D5 | 10.5mm | #3 Phillips |
More range are available, for further information contact us at info@fds-org.com
