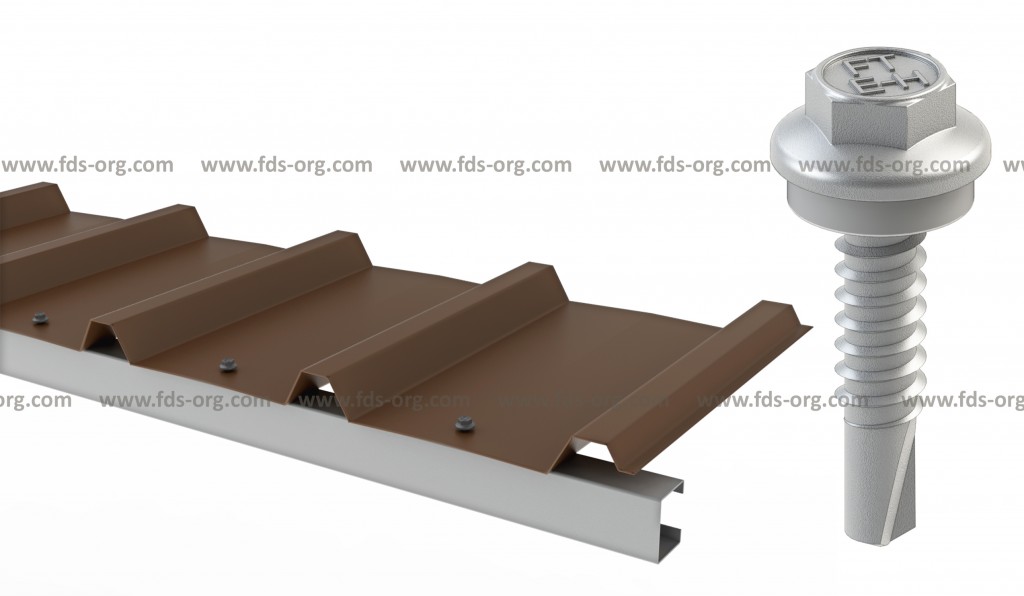

Valley fixing of profiled sheeting to medium steel sections
Hex Washer Flange, Self-Drilling Fastener with Grey EPDM Washer.
| Size | Drilling Capacity | Drive System |
|---|---|---|
| EH HWF #10-16x16mm | 4.5mm | 8mm HEX |
| EH HWF #10-16x20mm | 4.5mm | 8mm HEX |
| EH HWF #10-16x25mm | 4.5mm | 8mm HEX |
| EH HWF #12-14x20mm | 6mm | 8mm HEX |
| EH HWF #12-14x25mm | 6mm | 8mm HEX |
| EH HWF #12-14x30mm | 6mm | 8mm HEX |
| EH HWF #12-14x35mm | 6mm | 8mm HEX |
| EH HWF #12-14x40mm | 6mm | 8mm HEX |
| EH HWF #12-14x45mm | 6mm | 8mm HEX |
| EH HWF #12-14x50mm | 6mm | 8mm HEX |
| EH HWF #12-14x55mm | 6mm | 8mm HEX |
| EH HWF #12-14x60mm | 6mm | 8mm HEX |

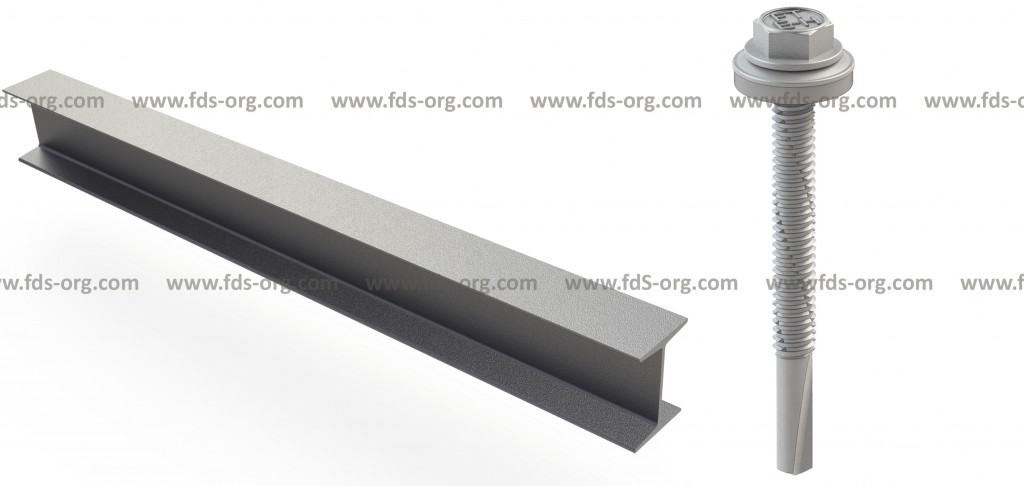

Valley fixing of profiled sheeting to hot-rolled steel
Hex Washer Head, D5 Drill Point, Self-Drilling Fastener with OD16mm Aluminium Bonded EPDM Washer.
| Size | Drilling Capacity | Drive System |
|---|---|---|
| EH HWH #12-24x55mm D5 | 12.5mm | 8mm HEX |
| EH HWH #12-24x65mm D5 | 12.5mm | 8mm HEX |
| EH HWH #12-24x75mm D5 | 12.5mm | 8mm HEX |
| EH HWH #12-24x85mm D5 | 12.5mm | 8mm HEX |
| EH HWH #12-24x95mm D5 | 12.5mm | 8mm HEX |
| EH HWH #12-24x110mm D5 | 12.5mm | 8mm HEX |
| EH HWH #12-24x130mm D5 | 12.5mm | 8mm HEX |
| EH HWH #12-24x150mm D5 | 12.5mm | 8mm HEX |
More range are available, for further information contact us at info@fds-org.com
